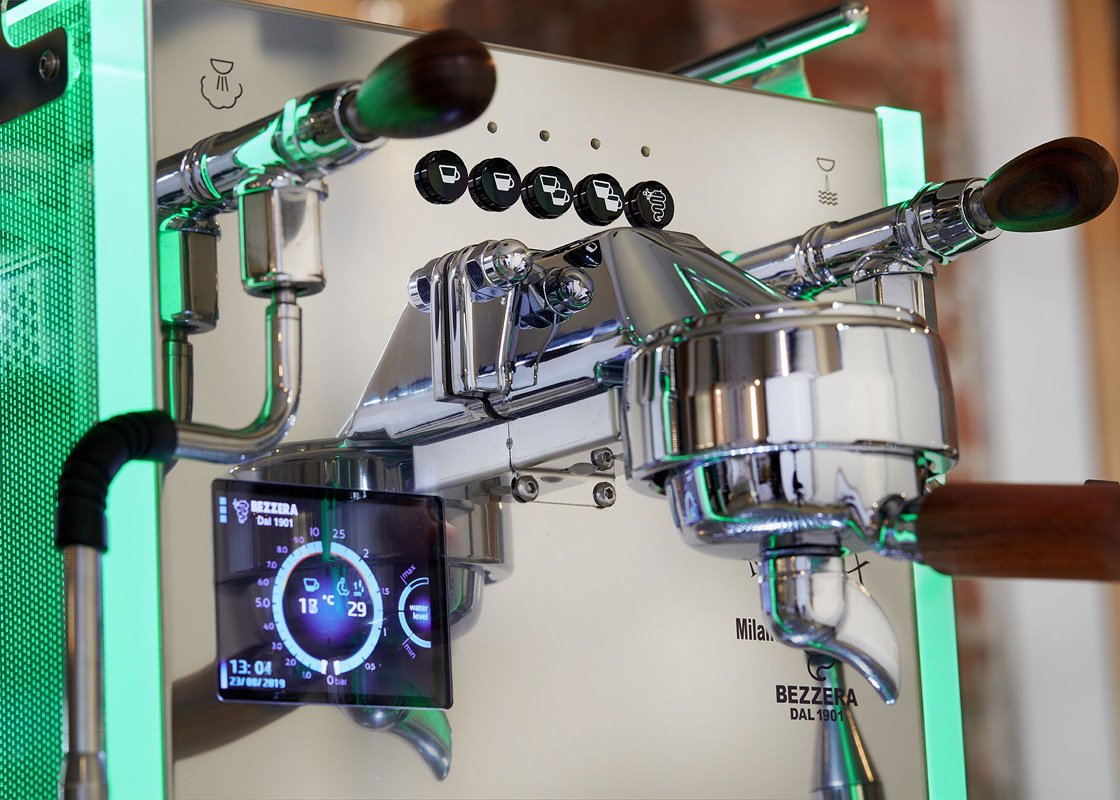

The Matrix model represents innovation in the world of semi-automatic espresso coffee machines. It combines traditional "LEVER" technology with sophisticated software and electronics that allow, through a 3.5" touch display, control over the double water heater system and the selection of body colours according to the style of the environment, also available in the DE version with 3 thermostats and volumetric dispensing.

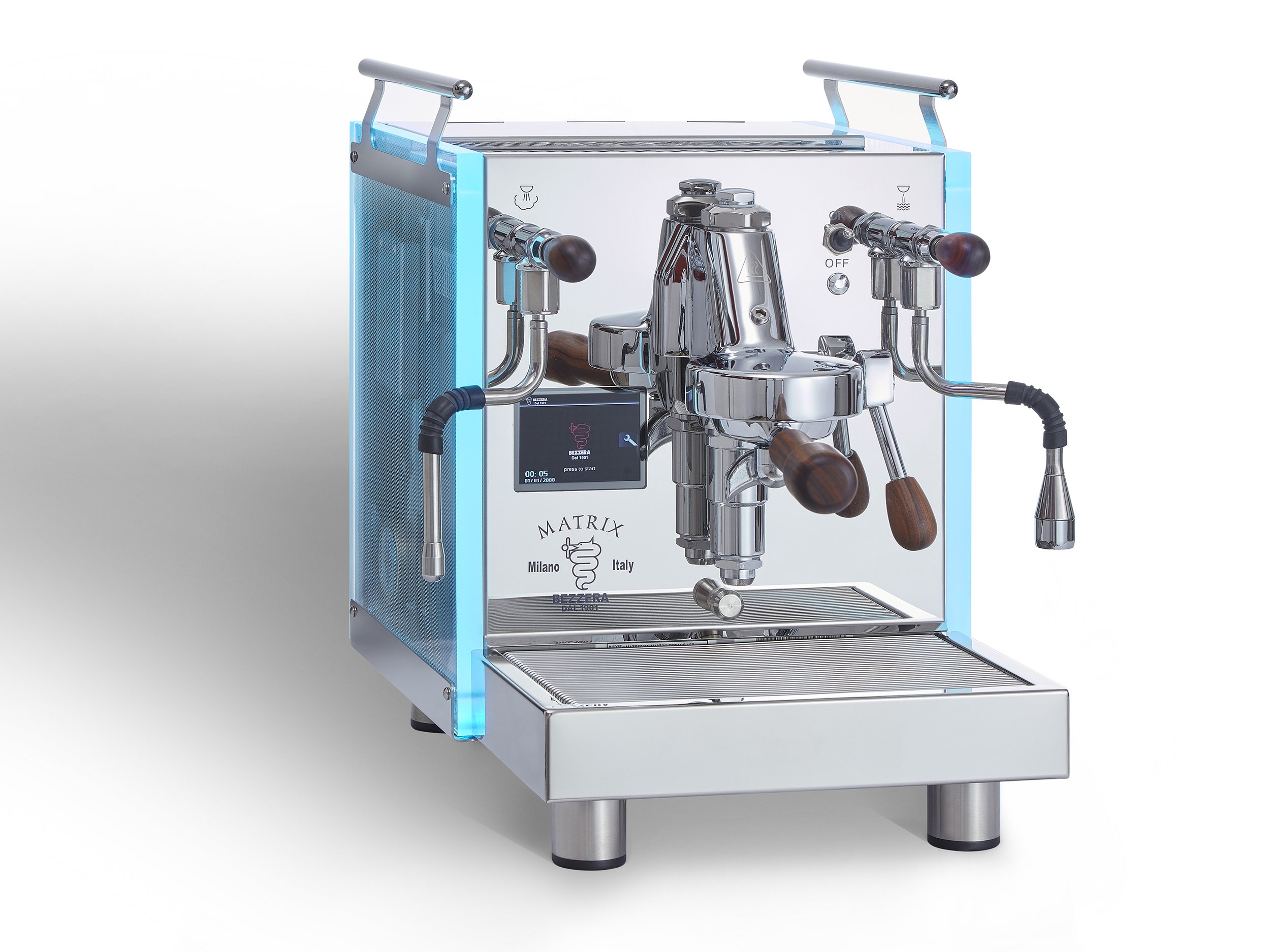

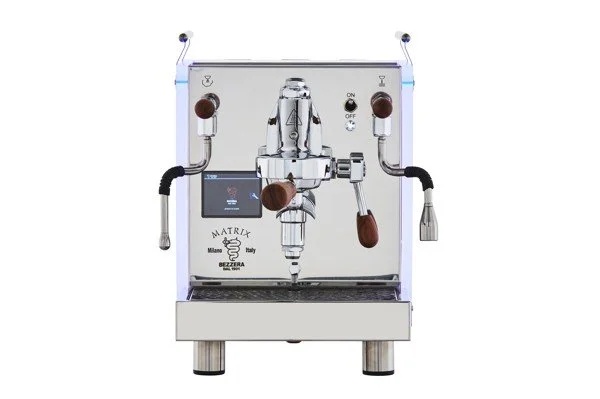

MATRIX MN - 2 PID thermostats
It works with the traditional manual lever unit: dispensing of the coffee begins by pushing of the lever upwards and stops by lowering it once the desired quantity has been dispensed into the cup.
The unit is heated by the thermosiphonic circulation system with water coming from a small water heater dedicated to extraction of the coffee. The temperature is controlled by a PID thermostat which ensures optimum thermal stability in the range from 88 to 96°C.

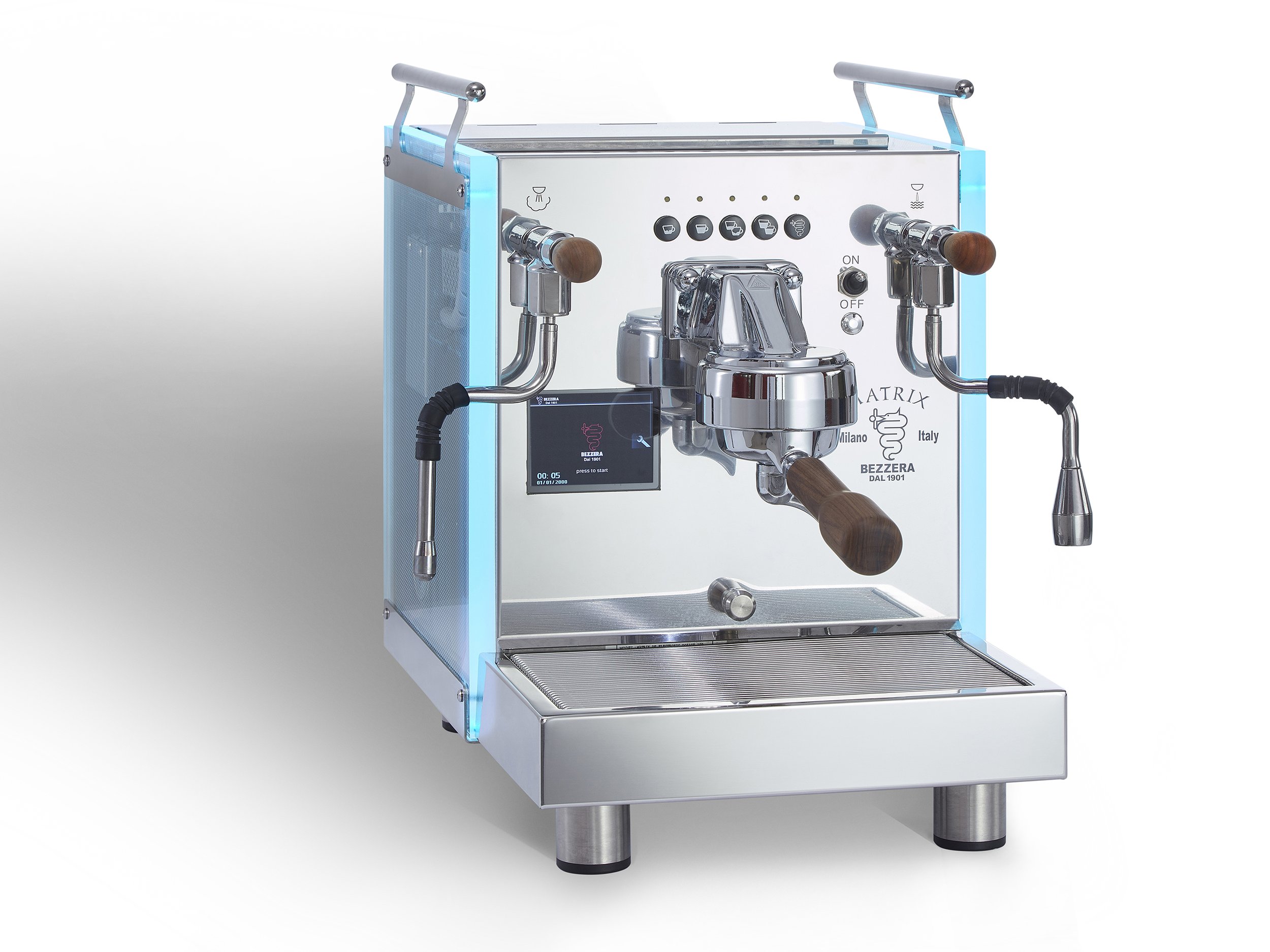

MATRIX DE - 3 PID thermostats
The unit is heated by an electrical resistance which is activated by a PID thermostat that keeps a constant temperature.
The second PID thermostat allows adjusting of the water temperaturein the water heater dedicated to coffee extraction, which ensures optimum thermal stability in the range from 88 to 96°C.
The steam/water circuit is connected to an independent water heater driven by a PID thermostat that also allows maximising of the vaporisation power in the case of intensive use.
The DE version is fitted with volumetric coffee dispensing managed by microprocessor with 4 doses that are directly programmable from the keyboard; the fifth button activates the continuous dispensing operation.
In both versions the hydraulic system powered by a rotary pump can use a 4-litre internal water tank or be connected to the water supply.
MAIN FEATURES:
Frame and body in AISI 304 (14301)
Automatic daily on/off setting
Automatic Backflush program
Settable pre-infusion
Water filter alarm and maintenance cycles

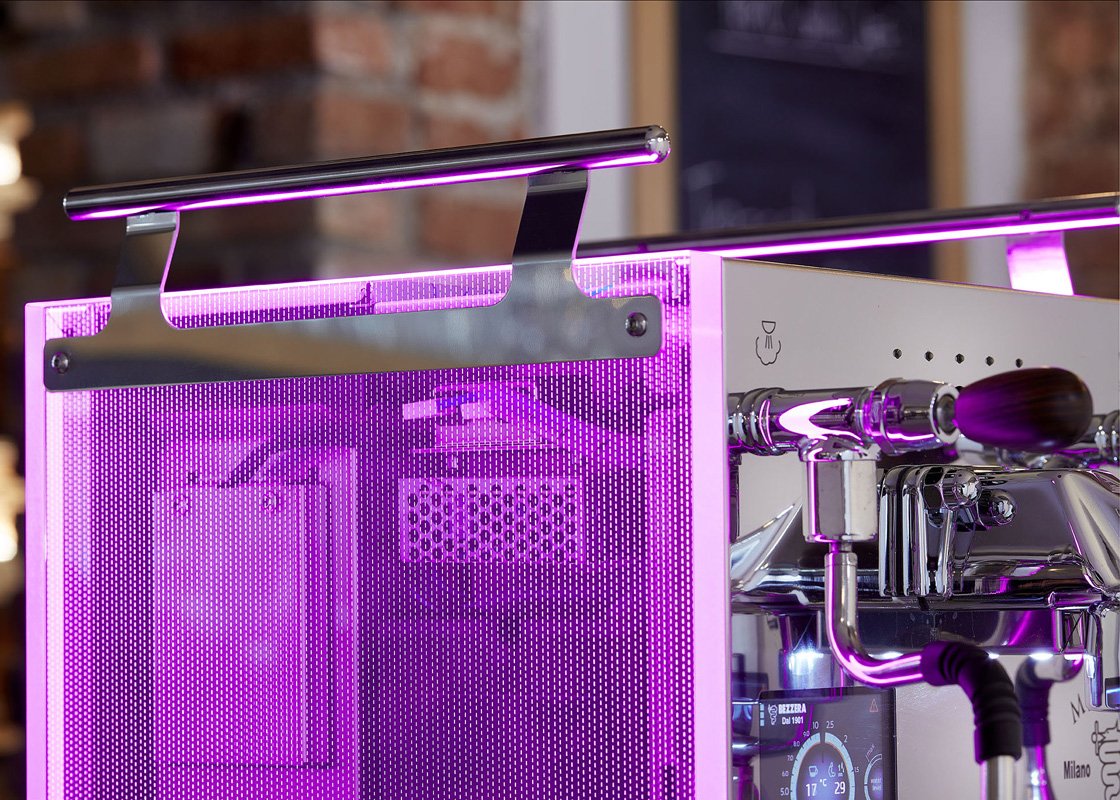

Calibration Intensity and RGB LED colour
Selection of supply from the water mains or from the tank
Water heater priority setting
